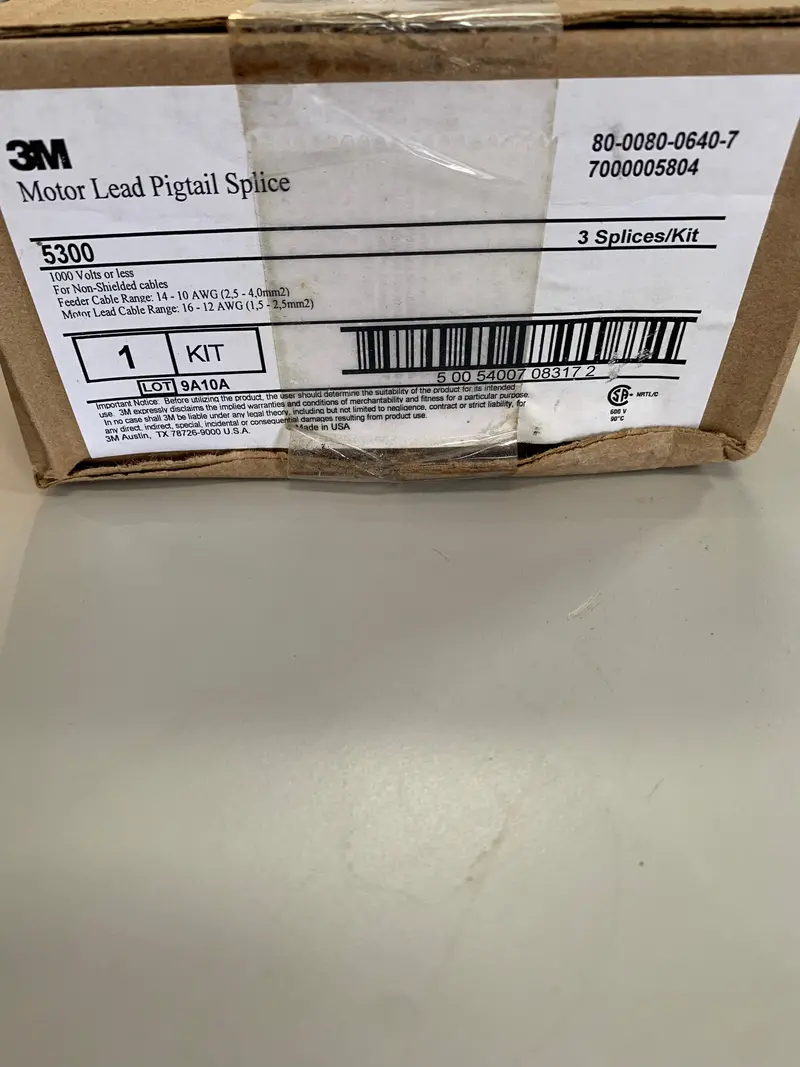

3M 5300 Motor Lead Pigtail Splice Kit – Unused Surplus

Description

3M 5300 Motor Lead Pigtail Splice – New Surplus

Description:

Non-Shielded Cable Type; (3) Pigtail Lug Cover, (3) Mastic Sealing Strip, (3) Tube of Silicone Grease, (1) Instruction Sheet Contents; UL, CSA Approval; 1-Hole Copper Lug Connector Type; 1 Kilovolt Voltage Rating; 3 Splice(S)

Brand: 3M

Connection Type: Pigtail (non-shielded)

Insulation Outside Diameter: 0.12-0.21 Inch

Insulation Outside Diameter Range: 0.12-0.21 in

Insulation Outside Diameter Range (Metric): 3.0 – 5.3mm

Lug Cover Inner Diameter: 0.45 in

Lug Cover Inner Diameter (Metric): 11.4 mm

Lug Cover Length: 2.1 in

Lug Cover Length (Metric): 53.3 mm

Maximum Bolt Length: 3/8 in

Maximum Bolt Length (Metric): 9.5 mm

Maximum Feeder Lead Size: 10 AWG

Maximum Motor Lead Size: 12 AWG

Maximum Operating Voltage: 1 kV

Range Feeder Cable (AWG & kcmil): 14-10

Splice Type: Pigtail Only

Voltage: 1 kV
